1.0 Introduction

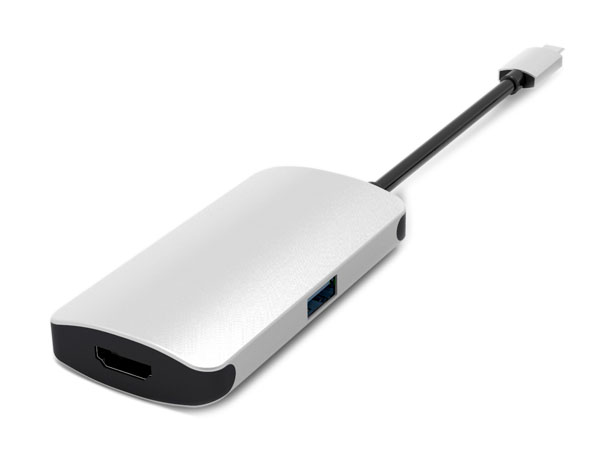

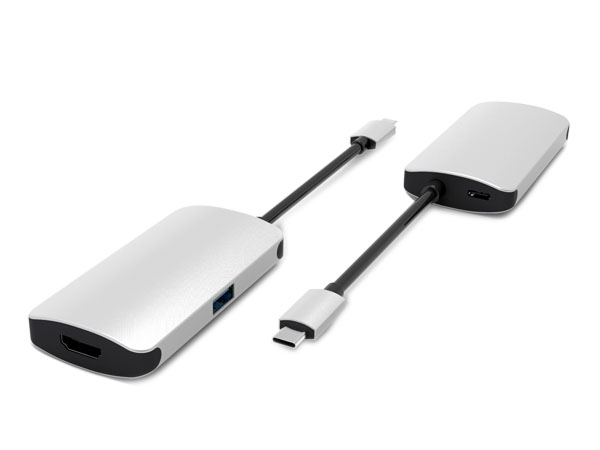

This is a USB-C to USB 3.0 with HDMI and Type-C charging port hub. The USB3.0 port allows you to connect

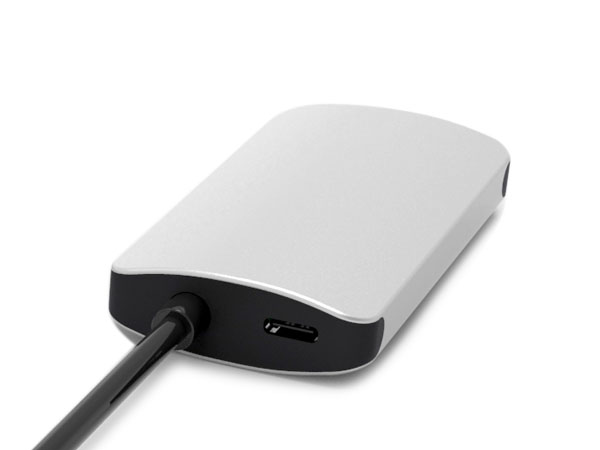

a USB device to a host computer or another hub, the USB-C female port can charge for the host computer and
supple power for the adapter at the same time, and the HDMI port (DP Altmode) allows you to connect an extra
monitor so that you can watch videos or slideshows on a big screen. It can work on Macbook or Google
new Chromebook Pixel and other USB-C supported devices.
2.0 Features
Support USB-C input, USB3.0 and HDMI output
Support USB 3.0 super speed (5Gbps) transmission, downward compatible USB2.0
Support per lane data rates of 5.4Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR)
Support HDMI resolution up to 4Kx2K@30HZ
Support to charge for Macbook or Google new Chromebook Pixel and other USB-C
supported devices and supply power for the adapter at the same time
Multiple USB-C interfaces support plug and play, hot swap
Easy to use and carry
3.0 Specification
Input/Output Connector |
|
Input |
USB-C Male x1 USB-C Female x1 |
Output |
HDMI Female x1 USB-C Female x1 |
Resolutions |
|
Resolutions |
Up to 4KX2K@30HZ |
Warranty |
|
Limited Warranty |
1 year |
Environmental |
|
Operating Temperature |
0 ℃ to +45℃ |
Operating Humidity |
10% to 85 % RH (no condensation) |
Storage Temperature |
-10℃ to +70℃ |
Storage Humidity |
5% to 90 % RH (no condensation) |
Power Supply |
|
USB3.0 Port |
UP to 5W Max |
USB-C Female Charging Port |
Up to 60W Max |
Regulatory Approvals |
|
Certifications |
FCC,CE |
Accessory Adapter |
|
User Manual |
English Version |
