New HDMI active Fiber Optic UHD Pluggable HDMI Cable
which is suited for critical and versatile installations.
It supports HDMI Maximum Data Rate 18Gbps with light weight, flexible and ultra-small long-term bending radius (20mm) hybrid cable. With our advanced optical engine embedded.
This HDMI Hybrid Cable provides full HDMI signal integrity, support up to 100m maximum length, plug and play. No external power required.,MMM
KEY FEATURES
- Support 18G super speed
- Supports a wide range of resolutions up to 4K@60Hz (color space 4:4:4) 3D and Deep color
- Supports Multi-channel audio, Dolby True HD, DTS-HD Master Audio
- HDMI compliant: EDID, CEC, HDCP (2.2), HDR (High Dynamic Range)
- Reduced EMI and RFI
- Has high pulling strength and compression load
- Has Source / Display clearly printed on the connector as well as tagged on the cable for easy
- identification.

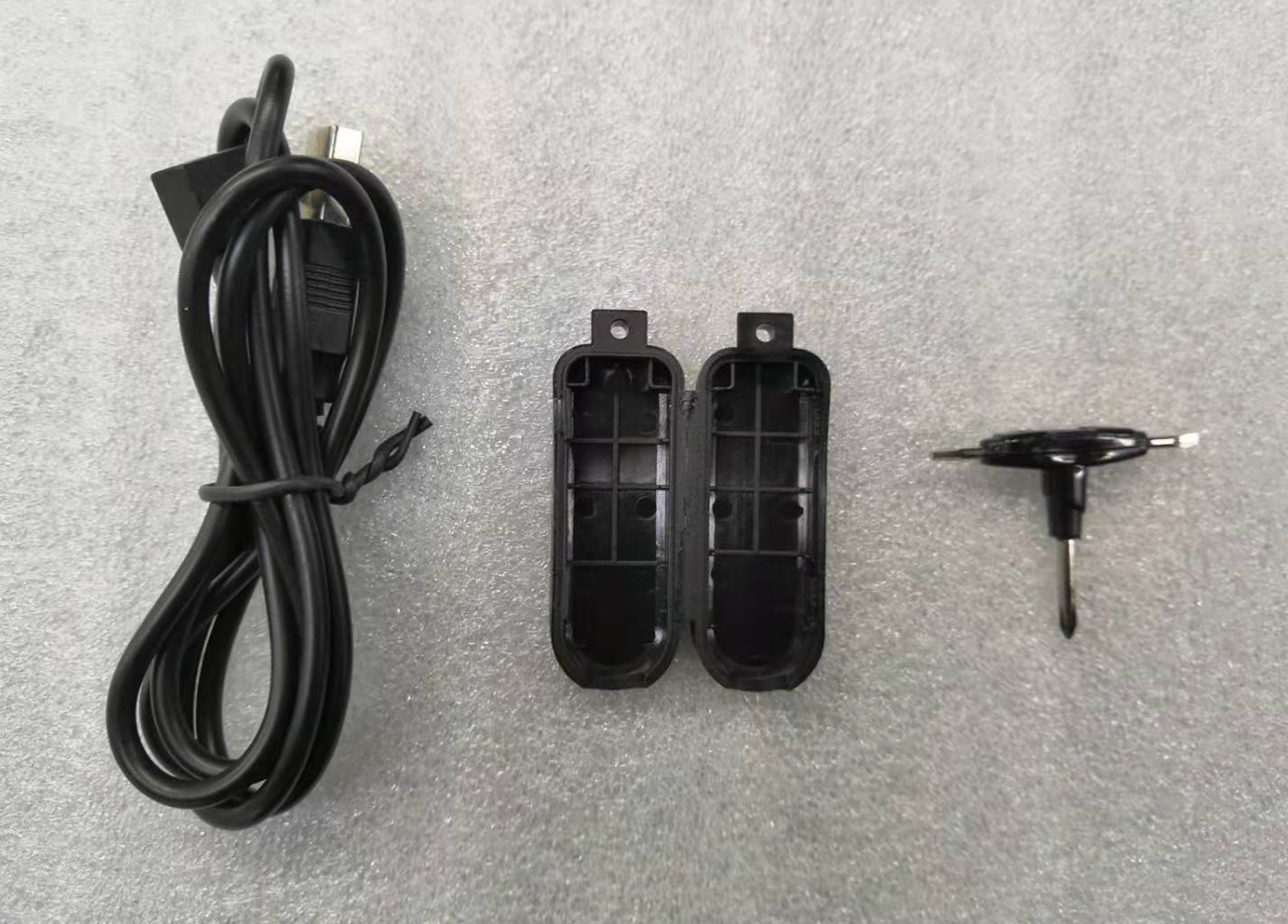

- Includes a DC cable to optionally connect an external 5V power supply(if required, this is typically connectedon the display side .)
Absolute Maximum Rating
|
Parameter |
Symbol |
Min |
Max |
Unit |
|
Power Supply Voltage |
VCC |
4.5 |
5. 5 |
V |
|
Operating Temperature |
Top |
0 |
50 |
°C |
|
Storage Temperature |
Ts |
-40 |
70 |
°C |
|
Relative Humidity |
Hs |
10 |
80 |
%R H |
Recommended Operating Conditions
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
|
Power Supply Voltage |
VCC |
4.75 |
5.0 |
5. 25 |
V |
|
Operating Temperature |
Top |
0 |
|
50 |
°C |
Specifications
|
Item |
Description |
||
|
Units |
Transmitter (Source) |
Receiver ( Display ) |
|
|
HDCP & DDC |
HDCP 2. 2 Fully Support bi-directional EDID and HDCP communication |
||
|
Video Bandwidth |
6 Gbps /x3Channel (max)+ Clock. |
||
|
Supported Resolution & Distance |
HDTV : 480p, 720p, 1080i and 1080p deep color, 4K@30Hz, 4K@60Hz(4:4:4), 3D Full HD 1920 x 1080 , up to 100 meters |
||
|
O/E Converter |
4 channel 850 nm VCSEL array |
4 CH GaAs PD array |
|
|
Connector Type |

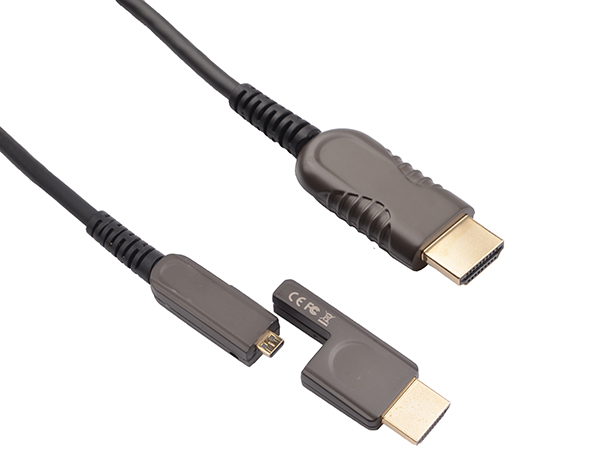

HDMI type D with HDMI D/Female to HDMI A/Male Adaptor |
||
|
Connector Demension |
Type D: 44.2mm x 12.7mm x 7.1mm W, D, H Type A : 48.2mm x 20mm x 10mm W, D, H Pulling Tool : 55.2mm x 17.5mm x 13mm W, D, H |
||
|
Cable Type |
Hybrid type with OM3 fiber and copper wire |
||
|
Cable Length |
15m/20m/30m/40m/50m/60m/70m/80m/90m/100m (with +/-30cm tolerance) Custom length available. |
||
|
Cable Outer Diameter |
4.5mm |
||
|
Jacket Outer Material |
PVC/TPU(Custom) |
||
|
Cable Weight TBD |
Cable Weight TBD |
||
|
Cable Color TBD |
Cable Color TBD |
||
|
Differential Input |
100 ohm (typ) |
||
|
Power Consumption |
250mW (max) |
||
