1. Introduction

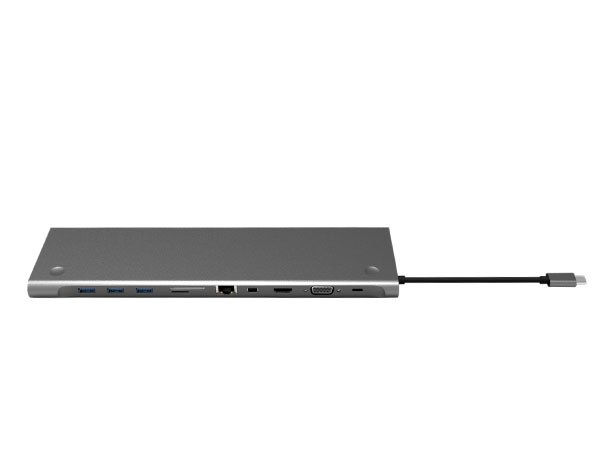

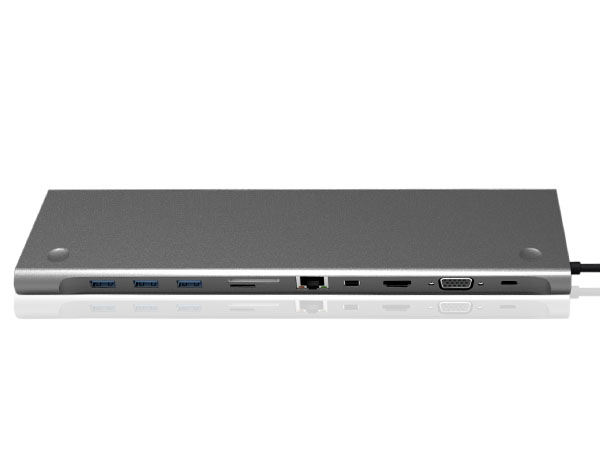

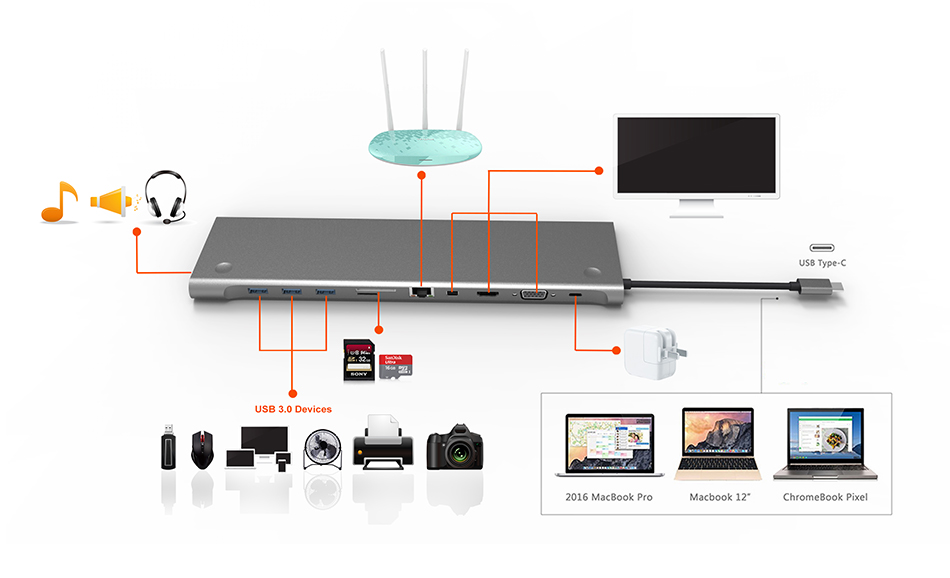

This USB-C docking, with its multiple ports, allows you to connect a host PC to monitors or devices with Mini DisplayPort, HDMI, VGA and USB3.0 ports, and also allows your host PC to get access to fast network with its Gigabit Ethernet port. Besides, the SD/MMC and Micro SD card slot allows you to insert memory card to the host PC and the USB-C female port can charge for the host computer.

2. Features

Support USB-C input, USB3.0 Output

Support HDMI Female, Mini DisplayPort Female, VGA Female, USB-C Female, USB 3.0 Female, Gigabit Ethernet, Stereo, SD Card, Micro DS Card, USB-C interface

Support HDMI resolution up to 4kx2k@30Hz

Support Mini DisplayPort resolution up to 4kx2k@30Hz

Support VGA resolution up to 1920x1200@60Hz

The total output of the 3 USB-A is 10W(5V@2A), 1 port supports BC 1.2, with max 7.5W(5V@1.5A), the other two ports share max 5W (5V@1A)

Support 10/100/1000Mbps bandwidth

Stereo port supports both microphone and headphone

USB-C female charging port for Macbook or Google new Chromebook Pixel and other USB-C supported devices.

Multiple USB-C interfaces support plug and play, hot swap

Support SD/SDHC/SDXC

Support Secure Digital v3.0 UHS-I (Reading speed max 70Mbps, Writing speed max 90Mbps)

Support Multi Media Card (MMC) specification

Support Micro SD/SDHC/SDXC (up to 128 GB)
